Pancake coil vs straight copper tube is one of the most common comparisons when selecting copper tubing for HVAC, refrigeration, plumbing, and industrial piping projects. Although both products are manufactured from high-purity copper and offer excellent thermal conductivity and corrosion resistance, they are designed for different installation methods and applications.
Understanding these differences helps contractors reduce installation time, improve system reliability, and optimize project costs. This guide explains pancake coil vs straight copper tube, helping engineers, distributors, and project owners choose the most suitable solution for their specific applications.
Understanding Pancake Coil vs Straight Copper Tube
When discussing pancake coil vs straight copper tube, the primary difference lies in the product form and intended application rather than the material itself.
A pancake coil is supplied in a continuous coil with relatively short lengths, making it easy to transport and install in applications requiring flexibility. It is commonly used for split air conditioning systems, refrigeration equipment, and heat pump installations.
A straight copper tube, on the other hand, is manufactured in fixed straight lengths, typically ranging from 2 to 6 meters. It offers excellent dimensional stability and is widely used in commercial HVAC systems, plumbing, medical gas pipelines, and industrial manufacturing.
Both products can comply with international standards such as ASTM, EN, or JIS, depending on customer specifications.
Pancake Coil vs Straight Copper Tube – Key Differences
Selecting between pancake coil vs straight copper tube becomes easier when comparing their characteristics across several technical aspects.
| Feature | Pancake Coil | Straight Copper Tube |
|---|---|---|
| Product form | Coiled | Straight length |
| Flexibility | Excellent | Limited |
| Installation | Easy bending on-site | Requires fittings for direction changes |
| Transportation | Compact | Requires longer storage space |
| Typical applications | Residential HVAC, refrigeration | Commercial HVAC, plumbing, industrial systems |
| Available tempers | Soft annealed | Hard, half-hard, annealed |
Although both products are manufactured from high-quality copper, choosing the appropriate form depends on installation conditions rather than product quality.
Installation Efficiency
One of the biggest considerations in pancake coil vs straight copper tube is installation efficiency.
Pancake coils allow installers to create long continuous refrigerant lines with fewer joints. Fewer brazed connections reduce the possibility of refrigerant leakage while shortening installation time.
Straight copper tubes provide superior rigidity. They are ideal for projects requiring long, straight pipeline runs with accurate alignment, especially inside commercial buildings or industrial facilities.
Transportation and Storage
Pancake coils occupy less storage space because they are wound into compact coils. This makes transportation easier, especially for export markets.
Straight copper tubes require careful handling to avoid bending during transportation. They also require larger warehouse storage areas due to their fixed length.
When Should You Choose Pancake Coil vs Straight Copper Tube?
There is no universal answer when comparing pancake coil vs straight copper tube. The correct choice depends entirely on the application.
Choose pancake coils when:
- Installing residential split air conditioners.
- Routing refrigerant lines through walls or ceilings.
- Reducing the number of brazed joints.
- Fast installation is a priority.

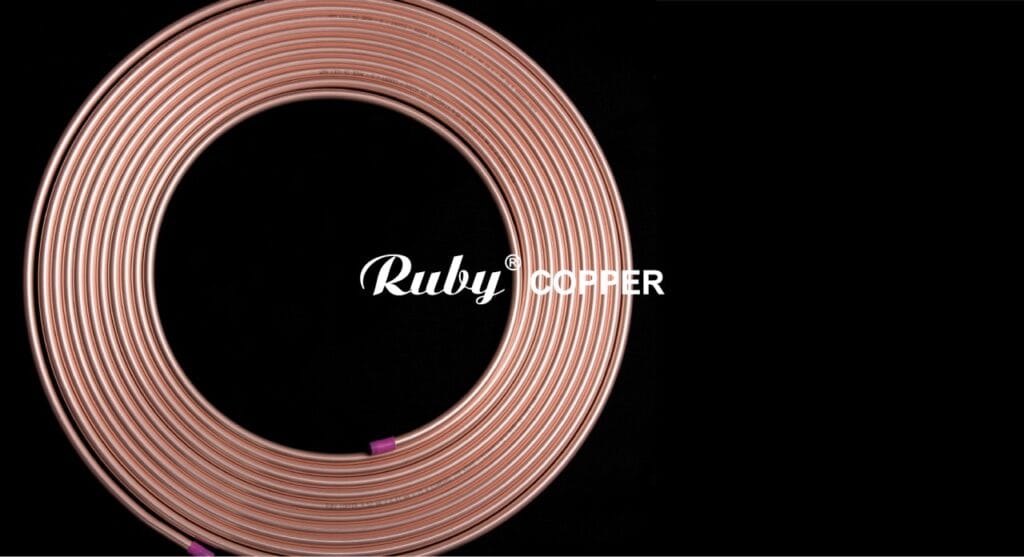

Pancake coil vs straight copper tube: Ruby Copper pancake coil for efficient HVAC and refrigeration installation.
Choose straight copper tubes when:
- Constructing commercial HVAC systems.
- Building chilled water or plumbing networks.
- Manufacturing copper fittings or components.
- High dimensional accuracy is required.
Professional contractors often use both products within the same project, depending on each pipeline section.
How Ruby Copper Ensures Quality for Both Products
At Ruby Copper, both pancake coils and straight copper tubes are manufactured using premium Class 1 copper cathodes with a minimum purity of 99.95%.
Every production stage is carefully controlled, including continuous casting, surface milling, planetary rolling, intermediate drawing, final drawing, bright annealing, non-destructive testing, and final inspection. These processes ensure consistent dimensions, smooth internal surfaces, excellent cleanliness, and reliable mechanical performance.
Whether customers require pancake coils for residential HVAC systems or straight copper tubes for industrial applications, Ruby Copper manufactures products that comply with major international standards, including JIS H3300, ASTM, EN, and AS/NZS requirements.
With advanced production lines, experienced engineers, and strict quality management, Ruby Copper supplies copper tubes to customers across multiple global markets while maintaining consistent product performance.
Choosing Between Pancake Coil vs Straight Copper Tube
Understanding pancake coil vs straight copper tube helps contractors and project owners make informed purchasing decisions.
Pancake coils provide outstanding flexibility, simplify installation, and minimize field joints, making them the preferred solution for residential air conditioning and refrigeration systems.
Straight copper tubes deliver superior structural stability and dimensional accuracy, making them ideal for commercial buildings, industrial piping, plumbing, and manufacturing applications.
Rather than asking which product is better, the more important question is which product best matches the project’s technical requirements. By selecting the appropriate copper tube and partnering with an experienced manufacturer like Ruby Copper, contractors can improve installation efficiency, reduce lifecycle costs, and ensure long-term system reliability.
